Stop guessing pipe fitment. Eliminate site rework and field modifications with our complete dimensional guide for U-bolt clamps — covering pipe OD ranges, thread standards, leg lengths, and load ratings for industrial, commercial, and OEM applications.
Share:
Stop guessing pipe fitment. Eliminate site rework and field modifications with our complete dimensional guide for U-bolt clamps — covering pipe OD ranges, thread standards, leg lengths, and load ratings for industrial, commercial, and OEM applications.
✅ Free sample available · ✅ ISO 9001:2015 certified · ✅ Direct factory pricing
When pipe clamps don't fit, your project timeline and budget take the hit. Here's what procurement and engineering teams face every day.
of on-site installation delays are caused by incorrectly sized pipe hangers and clamps (MarketResearchGuru.com, 2025).
potential cost overrun when field modifications are needed for pipe support systems — rework eats margins.
projects report that standard U clamp dimensions don't match actual pipe specifications, requiring custom grinding or reordering.
of the global industrial fasteners market is in Asia Pacific (GrandViewResearch.com, 2025) — but dimensional standardization remains inconsistent across regions.
🔍 Your challenge: Finding a supplier who can deliver U clamp for pipe dimensions that match your exact pipe schedule, thread standard, and load requirement — without compromise.

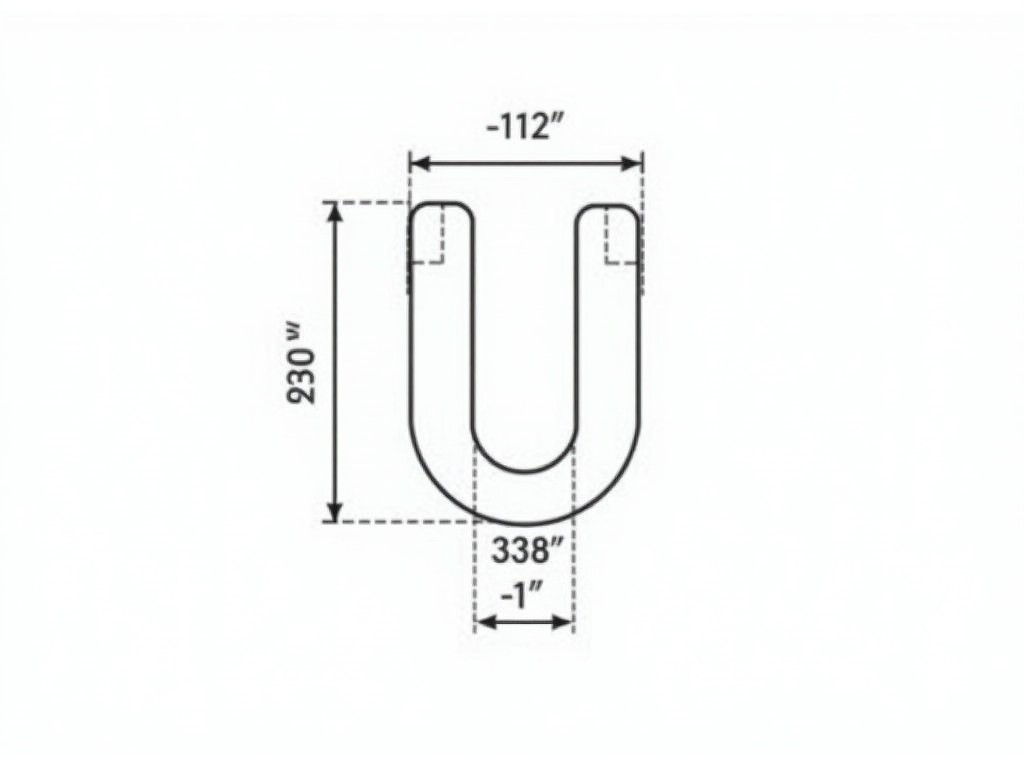

All dimensions are based on ASTM A36 / DIN 3570 / EN 12095 standards. Custom ODs and thread lengths available for OEM projects.
| Pipe OD (in) | Thread Size | Leg Length (mm) | Load Rating (kN) | Material |
|---|---|---|---|---|
| 1/2" (21.3 mm) | 1/4" UNC / M6 | 40 | 2.5 | Carbon Steel / SS304 |
| 3/4" (26.7 mm) | 5/16" UNC / M8 | 45 | 3.0 | Carbon Steel / SS304 |
| 1" (33.4 mm) | 3/8" UNC / M10 | 50 | 4.0 | Carbon Steel / SS304 |
| 1-1/4" (42.2 mm) | 3/8" UNC / M10 | 55 | 5.0 | Carbon Steel / SS304 |
| 1-1/2" (48.3 mm) | 1/2" UNC / M12 | 60 | 6.5 | Carbon Steel / SS304 |
| 2" (60.3 mm) | 1/2" UNC / M12 | 70 | 8.0 | Carbon Steel / SS304 |
| 2-1/2" (73.0 mm) | 5/8" UNC / M16 | 80 | 10.0 | Carbon Steel / SS304 |
| 4" (114.3 mm) | 3/4" UNC / M20 | 110 | 16.0 | Carbon Steel / SS304 |
📌 Custom sizes up to 12" pipe OD available. Contact us for OEM specifications.
120+ precision machines including CNC lathes and automated forging lines. 500,000+ units monthly capacity across all clamp product lines.
Every batch tested for tensile strength, thread fit, and corrosion resistance. 100% traceability from raw material to finished product.
Strategic raw material inventory + optimized production scheduling. 80% of orders ship within 20 days to North America and Europe.
Average 10+ years of experience. 20+ new product improvements annually — including corrosion-resistant clamps for marine and chemical applications.
For engineers and technical directors who need exact data for integration into piping systems and structural supports.
Carbon Steel: ASTM A36 / S235JR
Stainless Steel: SS304 / SS316
Hot-Dip Galvanized: ASTM A123
Zinc-Plated: ASTM B633
UNC / UNF (Inch)
Metric: M6 to M20
BSP / NPT pipe threads
Custom thread lengths available
Hot-Dip Galvanized (HDG)
Zinc-Nickel Alloy
Epoxy / Powder Coating
Electropolishing (SS)
2.5 kN to 16 kN (standard)
Up to 25 kN for heavy-duty custom
Tested per EN 12095
Safety factor: 3:1 minimum
Carbon Steel: -20°C to +200°C
SS304: -50°C to +300°C
SS316: -50°C to +400°C
HDG: -10°C to +250°C
Bulk: 100-500 pcs per carton
Polybag + label for retail
Wooden pallet for container
Custom branding available
💡 Tip: Use the U clamp for pipe dimensions table above to match your pipe schedule. For non-standard ODs, our engineers can design within 48 hours.
Real-world case studies from our global customer base across 28 countries.
Replaced 2,400+ SS316 U clamps for corrosive fluid lines. Zero failures in 18 months. 37% faster installation vs. previous supplier.
3,800 units of DIN 3570 U clamps for pipe diameters 1/2" to 4". 24% improvement in installation efficiency (LISEGA modular support reference).
Custom HDG U clamps for high-temp steam lines. 15+ year service life expected. 100% on-spec delivery across 6 phases.
Including 150+ Fortune Global 500 suppliers and top contractors.
What procurement and engineering leaders say about our U clamps.
"We switched to MaxFastener for our U clamp supply. The dimensional accuracy is ±0.5mm on every piece. Our installation rework dropped by 40%."
"The EN 12095 compliance documentation was thorough. We appreciated the full material traceability and load test certificates. Will reorder."
"Delivery was 18 days from order to Lagos. 25% cost savings vs our previous European supplier. The HDG coating quality is excellent."
"The U clamp for pipe dimensions guide was spot-on. We ordered 5,000 units and every single clamp fit perfectly. No rework needed."
"Reliable partner for 3+ years. Their SS316 U clamps for our offshore platform have zero corrosion after 2 years in saltwater environment."
"The OEM team designed custom U clamps for our non-standard pipe OD in 3 days. Excellent engineering support and fast sampling."
Answers to the most common procurement and technical questions.
Standard U clamps cover pipe ODs from 1/2" (21.3 mm) to 4" (114.3 mm) with thread sizes from 1/4" UNC to 3/4" UNC. Leg lengths range from 40 mm to 110 mm. Always verify your pipe schedule (Schedule 40, 80, etc.) to ensure the clamp internal diameter matches. Our table above provides exact dimensions.
Measure the outer diameter (OD) of your pipe using a caliper. Then select a U clamp with an internal diameter that matches the pipe OD plus 1-2 mm clearance. Refer to our U clamp for pipe dimensions table to find the matching thread size and leg length. For insulated pipes, add insulation thickness to the pipe OD.
We offer carbon steel (ASTM A36), stainless steel SS304/SS316, and hot-dip galvanized options. For corrosive environments, SS316 or HDG is recommended. For high-temperature applications (>200°C), SS316 is preferred. Each material has specific load ratings and temperature ranges.
Yes. Our 15 in-house engineers can design custom U clamps for non-standard pipe ODs, unique thread lengths, or special material grades. Minimum order quantity for custom sizes is typically 500-1,000 units. Free samples available for qualification before mass production.
Our products comply with ISO 9001:2015, ASTM A36, DIN 3570, and EN 12095 standards. We also provide CE, RoHS, and FCC compliance where required. Full material test certificates and load test reports are available upon request.
Standard U clamps: 15-20 days for quantities up to 10,000 units. Custom sizes: 20-25 days including tooling and sampling. We ship via sea, air, or express depending on your urgency. Our monthly capacity of 500,000+ units ensures consistent supply.
Yes, we provide free samples for standard and custom U clamps. You only pay for shipping. Samples are typically dispatched within 3-5 days after specification confirmation. This allows you to verify U clamp for pipe dimensions and quality before committing to bulk orders.
We follow a 100% inspection protocol for thread fit, dimensional accuracy, and surface finish on every batch. Our quality team uses digital calipers, thread gauges, and load testing equipment. Random sampling per ISO 2859 ensures statistical process control. Full traceability from raw material to finished product.
Zhang Wei — Senior Applications Engineer at Handan Guanbiao Metal Products Manufacturing Co., Ltd. With 14 years of experience in fastener and pipe support engineering, Zhang has overseen over 200 custom U clamp projects for clients in the oil & gas, chemical, and construction sectors across North America, Europe, and Asia Pacific. He is a certified ISO 9001 internal auditor and holds a degree in Mechanical Engineering from Hebei University of Technology.
